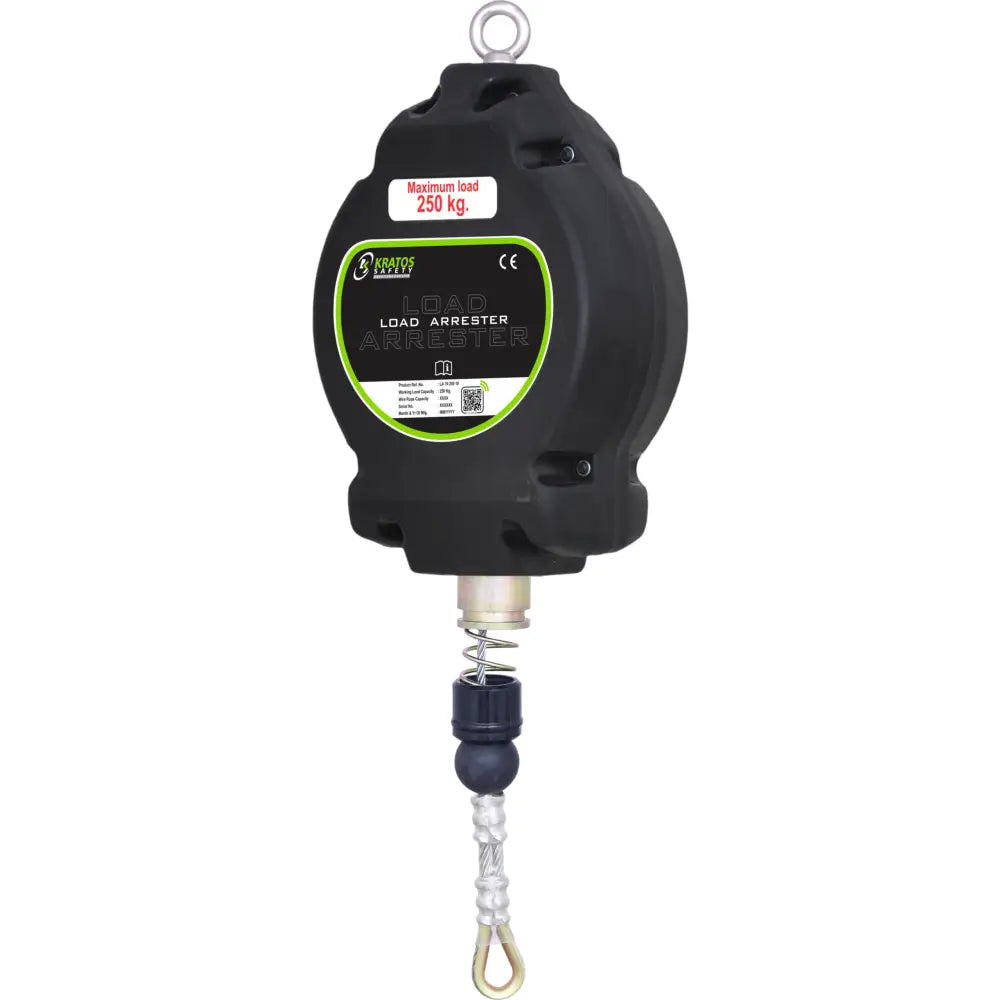

Kratos Safety SENTINELS REACT - Load Arrester (maxi 250 kg)

SENTINELS REACT - Load Arrester maxi 250 kg

Length of the wire rope : 10 metres

Load Capacity : 250 kg

Weight : 4.15 kg

Diametre of the wire rope : 4.8 mm

Conforms to : 2006/42/CE, EN ISO 80079-36:2016, EN ISO 80079-37:2016 (ATEX Zone 1).

Casing made up of high impact strength Polymer, to prevent breakage and is nearly indestructible.

Multi-ratchet quick fall arrest system.

Integrated energy absorber, which reduces the efforts on the structure.

Reduced fall arrest distance (approx. 0.3 m).

Maximum 60 cycles per day.

The products are delivered with their individual Declaration of Conformity relating to the Machinery Directive 2006/42/EC and any standards to which they conform. This Declaration of Conformity can be viewed and downloaded using the QR code on the product label. A specimen model is available in the "Attachments" section of our website.

Standards

Machinery Directive 2006/42/CE

Product details

Max. user weight : 250Kg

Standard(s): 2006/42/CE

Material: Carter Polymer ; câble acier galvanisé

PPE / NO PPE: No PPE

Size : longueur du câble: 10 mdiamètre du câble: 4.8 mm

Attachement points: émerillon en partie haute

Product highlights: charge max. 250 Kg

HS Code: 84798997

Attachments

• Instructions LA 10 XXX XX
LA 10 250 10, LA 10 300 XX, LA 10 400 XX, LA 10 500 XX, LA 10 1000 XX
Download

• FT LA 10 250 10
FT LA 10 250 10 F2024
Download

• ATEX Certificate 3266/1/2020
FA 60 008 00-01-03, LA 10 250 10, LA 10 300 10/15, LA 10 400 10/20, LA 10 500 10/15, LA 10 1000 11/16
Download

• la10XXX_Inspection5
LA 10 250 10, LA 10 300 XX, LA 10 400 XX, LA 10 500 XX
Download

• la1025010_dc_3
Download

• Repairability Index 8.9 LA
Calculation of the repairability index 8.9 LA
Download
